Room Alert 3S Product Tour

This port accepts AVTECH's 5V power adapter (shown above) to power the Room Alert 3S by main power. There are models for each and every country.

Room Alert 3S is PoE-enabled, so you may power it over PoE instead if you wish.

This RJ-45 port connects your Room Alert 3S to your network via an RJ-45 Ethernet cable (shown above).

This port is PoE-enabled, so you may power your Room Alert 3S by connecting it to your PoE-enabled switch.

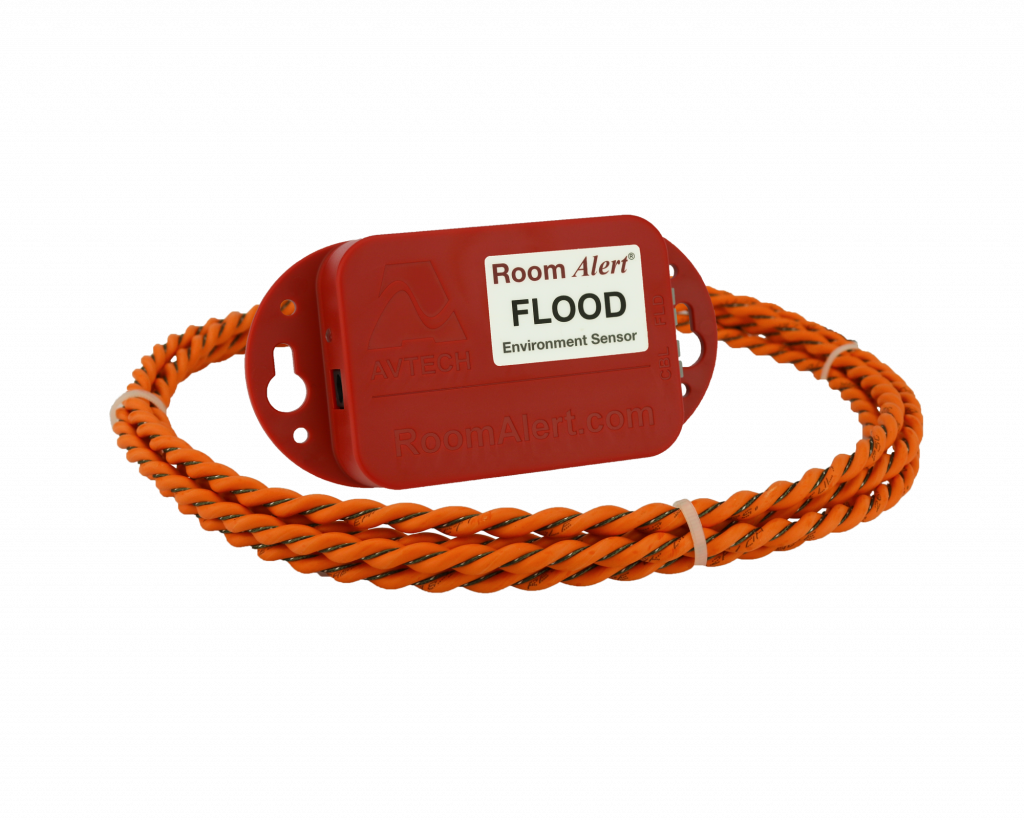

This ports accepts a switch sensor or dry contacts on a device such as a UPS. AVTECH offers switch sensors for every critical environment factor, such as power, flood (shown above), smoke, air flow and more.

This RJ-11 port accepts an AVTECH digital sensor or a Light Tower & Relay Adapter.

Our digital sensors include:

• Digital Temperature (above)
• Digital Outdoor Temperature
• Digital Fluid Temperature
• Digital Temperature & Humidity
• Digital Extreme Temperature
• Digital Temperature & Analog
• Digital Active Power

Through the Light Tower & Relay Adapter, you can connect a Light Tower or Relay Switch to your Room Alert 3S. The Light Tower provides visual and audible alerting, while the Relay Switch can turn on and off up to 4 low-voltage electrical devices.

This button resets Room Alert to defaults. It clears out all of your custom entries, such as your password and static IP address.
